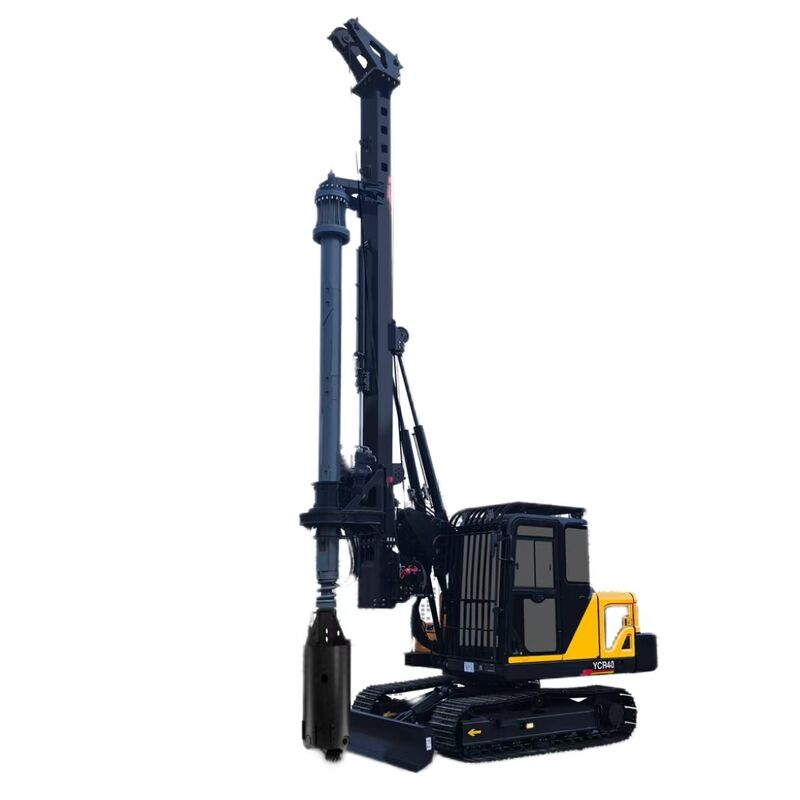

RO-40 Rotary Drilling Rig
Features:
Scope of Application: Drilling wells ,Self built houses
1. The RO-40 Rotary Drilling Rig is compact and flexible. This machine can pass through narrow passages and is convenient to use in confined construction environments.
2. Wider range: With a detachable mast and a low clearance design concept, it can adapt to various height-restricted working conditions.
3. Convenient transportation: Transport with the mast attached, the transportation height does not exceed the limit. The main unit and accessories can be transported in one vehicle, making site transfer convenient.
4. High efficiency in construction: The dual power head motor design ensures more stable torque output and higher operational efficiency; the power head, main hoist, and lower vehicle perform compound actions smoothly, with a fast main hoist speed and short lifting and lowering time.
5. Compact and flexible: Large driving force for walking, strong climbing ability; dedicated chassis design, small size, low center of gravity, and flexible and reliable walking.
6. Comfortable operation: New cab with a large space and wider vision; suspended seats enhance shock absorption and reduce fatigue from prolonged sitting; touch screen display, one-button start, and other features enhance the operation experience.
| RO-40 Performance Parameter | |
| Chassis | |
| Engine type | YCF3065 |
| Rated power/rotations | 48kW/2000rpm |
| Track width (outer margin) | 2260mm |
| Caterpillar width | 450mm |
| Traction | 82KN |
| Power head | |
| Maximum output torque | 40kN·m |
| Power head speed | 0~40rpm |
| Maximum applied pressure | 70KN |
| Maximum lift-off force | 60KN |
| Stroke of pressurized cylinder | 1500mm |
| Main winch | |
| Maximum lift | 50KN |
| Maximum acceleration | 60m/min |
| Wirerope diameter | φ16mm |
| Auxiliary winch | |
| Maximum lift | 15KN |
| Maximum acceleration | 35m/min |
| Wirerope diameter | φ10mm |
| Mast Rake | |
| Mast forward angle of inclination | 4° |
| Left and right tilt angles of the mast | ±4° |
| Hydraulic pressure system | |
| Main Pump Maximum Working Pressure | 28MPa |
| Drill hole | |
| Maximum drilling diameter | 1000mm |
| Maximum borehole depth | 15m |
| Main engine | |
| Operating Weight | 14t |
| Transport dimensions (L*W*H) | 7396*2260*2984mm |
| Working dimensions (L*W*H) | 4767*2260*9003mm |
| Recommended drill pipe model | |
| Rod string configuration | MZ/JSφ240-4*4.5m |
